Mechanical Flange Spreader ATEX 9,4 ton

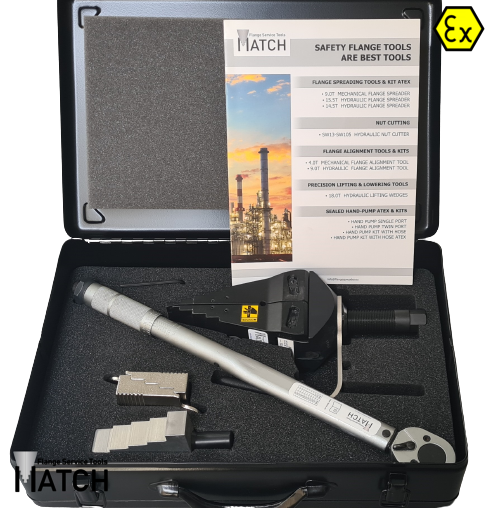

1 x MSW9TEX Mechanical Flange spreader
1 x Torque Wrench with 22mm Socket
1 x Safety Block and Lanyard
1 x Pair of Stepped Blocks
1 x Carry case
Tool Only Weight (KG) 5,8
Gross Kit Weight (KG) 11,80
This device features the following ATEX classification
II 2G ck IIB T6 / II 2D ck T85°C.
Mechanical Flange Spreader ATEX 9,4 ton
Mechanical Flange Spreader MSW9TEX with spreading force 9,4 t (94 kN) is mechanically operated using the supplied torque wrench. These tools are used in common installation, commissioning and maintenance processes, such as the replacements of valves and gaskets. A minimum opening of 6 mm is required to insert the tools.
It is ATEX certified for use in the hazardous areas in zones 1 and 2 (without PU Case)
SPREADING FORCE
with 203N.m (150ft.lb) torque applied:
▪ 9.4T (94kN)
SPREADING DISTANCE
▪ 6.0mm - 31.0mm
st using only 1st step
▪ 6.0mm - 62.0mm
using 4 steps (without stepped blocks)
▪ 31.0mm - 81.0mm
using optional stepped blocks kit
TOOL WEIGHT: 5.8kg
Operating manual only upon request
