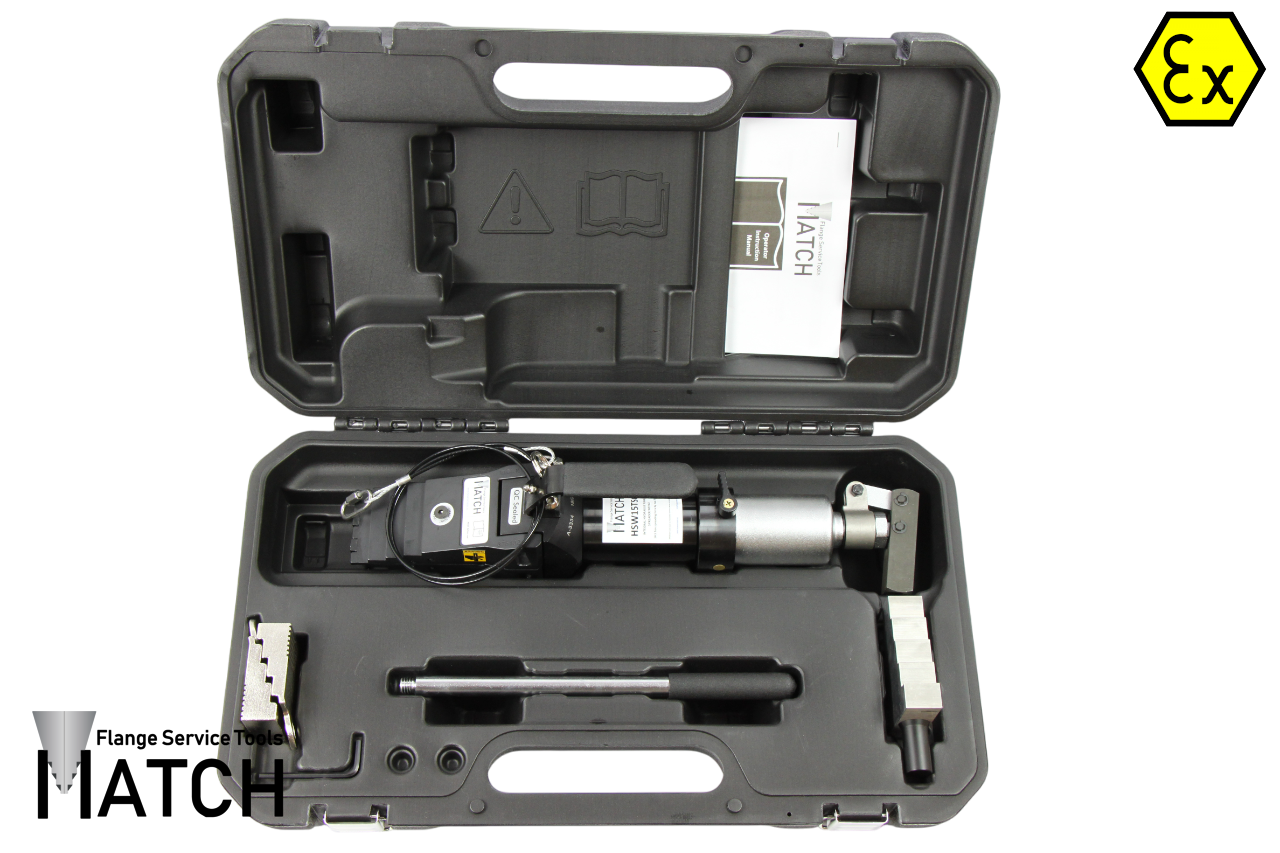

Integral Hydraulic Flange Spreader ATEX 14,5t
1 x HSW15TCSEX Integral Hydraulic Flange Spreader
with 700 bar Pump
1 x Safety Block & Lanyard
1 x Pair of Stepped Blocks
1 x Plastic Carry Case
Tool Only Weight (KG) 9,0
Gross Kit Weight (KG) 14,1
This device features the following ATEX classification
II 2G ck IIB T6 / II 2D ck T85°C.
Integral Hydraulic Flange Spreader ATEX 14,5t
Hydraulic Flange Spreader HSW15TSCEX with spreading force 14,5 t (145 kN) is actuated via the integrated hydraulic pump. These tools are used in common installation, commissioning and maintenance processes, such as the replacements of valves and gaskets. A minimum opening of 6 mm is required to insert the tools.
It is ATEX certified for use in the hazardous areas in zones 1 and 2 (without PU Case)
SPREADING FORCE
with 700bar hydraulic pressure applied:
▪ 14.5T (145kN)
SPREADING DISTANCE
▪ 6.0mm - 31.0mm
st using only 1st step
▪ 6.0mm - 62.0mm
using 4 steps (without stepped blocks)
▪ 31.0mm - 81.0mm
using optional stepped blocks kit
TOOL WEIGHT: 9.0kg
Operating manual only upon request
