HSW15TEXHPA Single Kit

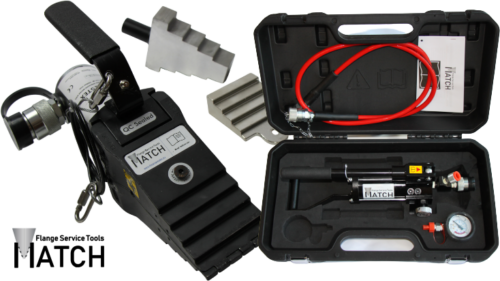

Hydraulic flange spreader (HSW15TEX Single) with safety loop, step blocks, safety block and hydraulic hand pump (HP350AEX) Single connection with 1x red hydraulic hose in transport case
Hydraulic flange spreader (HSW15TEX Single Kit) with transport case, safety strap, step blocks and safety block
Hydraulic flange spreader (HSW15TEX) in between orange pipes

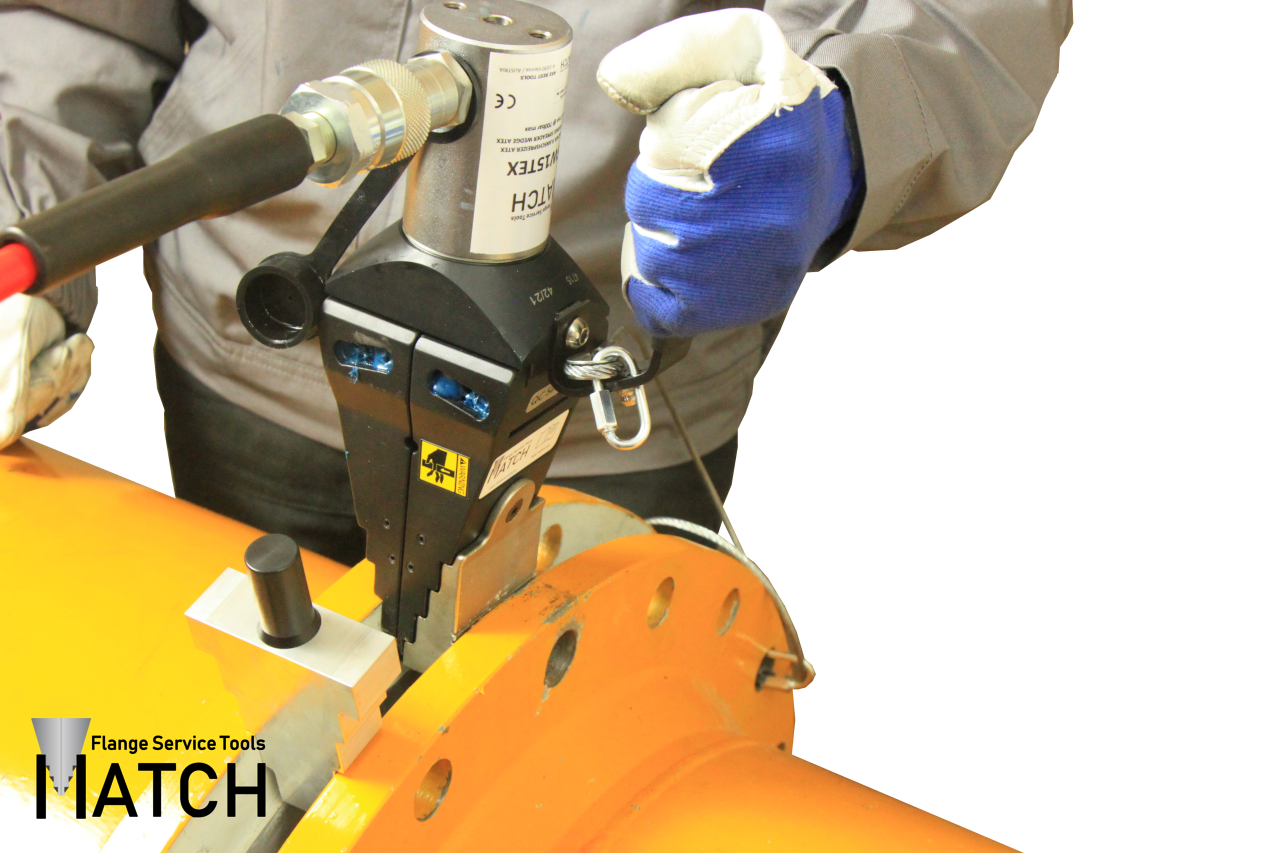

Hydraulic flange spreader (HSW15TEX) in between orange pipes with safety loop, step blocks and safety block
Hydraulic hand pump (HP350AEX) single connection with 1x red hydraulic hose in transport case
Hydraulic hand pump (P550AEX) Single connection with 1x red hydraulic hose

HSW15TEXHPA Single Kit

Hydraulic Flange Spreader ATEX 15,5 ton incl. HP350A Hydraulic Hand Pump Kit

BOX A
1 x HSW15TEX Hydraulic Flange Spreader
with Hydraulic Cylinder 700bar
1 x Safety Block & Lanyard
1 x Pair of Stepped Blocks
1 x Carry Case
Tool Only Weight (KG) 7,0

BOX B
1 x P350AEX single pump 700 bar,
0.35L oil capacity
1 x pressure gauge 0-1,000 bar + coupling 1/4″
1 x pressure gauge adapter with coupling 3/8″
1 x Hydraulic hose HH180
1 x Carry case
Tool Only Weight (KG) 4.2

Gross Kit Weight 12,20 + 8,70 = 20,90 kg

Categories: ,

Description

THIS KIT IS NOT ATEX CERTIFIED

Hydraulic Flange Spreader ATEX 15,5 ton Single Kit incl. HP350A Hydraulic Hand Pump Kit

Hydraulic Flange Spreader HSW15TEX with spreading force 15,5 t (155 kN) is actuated by an external hand pump. These tools are used in common installation, commissioning and maintenance processes, such as the replacements of valves and gaskets. A minimum opening of 6 mm is required to insert the tools.

It is ATEX certified for use in the hazardous areas in zones 1 and 2 (without PU Case) *Please note the difference between ATEX and non-ATEX rated Kits and Components.



HP350A Hydraulic Oil-tight Hand Pump – Hose KIT Single Connection

Oil-tight hydraulic hand pumps ATEX from MATCH have been specially developed to operate in all directions without loss of performance. This includes underwater applications.

Can be used with all 700 bar tools within their oil capacity specification, e.g. HSW15TEX Single Kit, HFA9T, HLW18T Single Kit. Each pump kit incl. pressure gauge, adapter, coupling and oil felt 1.80m hydraulic hose with couplings.

Tool Capabilities

Hydraulic Flange Spreader ATEX 15,5 ton

SPREADING FORCE
with 700bar hydraulic pressure applied:
▪ 15.5T (155kN)

SPREADING DISTANCE
▪ 6.0mm - 31.0mm
st using only 1st step
▪ 6.0mm - 62.0mm
using 4 steps (without stepped blocks)
▪ 31.0mm - 81.0mm
using optional stepped blocks kit

TOOL WEIGHT: 7.0kg



HP350A Hydraulic Oil-tight Hand Pump - Hose KIT Single Connection

MAX PRESSURE RATING
1st Stage : 13,8 bar
2nd Stage : 700 bar

OIL CAPACITY
350cc

Technical Data Sheets

Operating manual only upon request

TDS_HSW15TEX_Single-Kit_EN

TDS_HP350A-Kit_EN
