HPLW18THPB Twin Kit

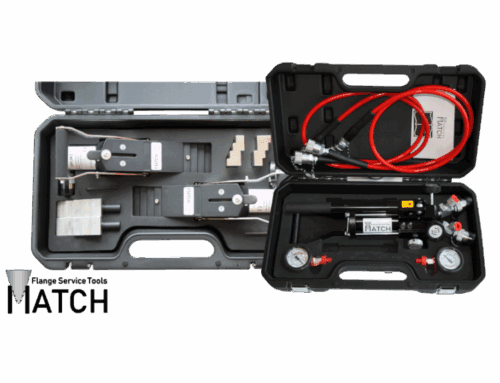

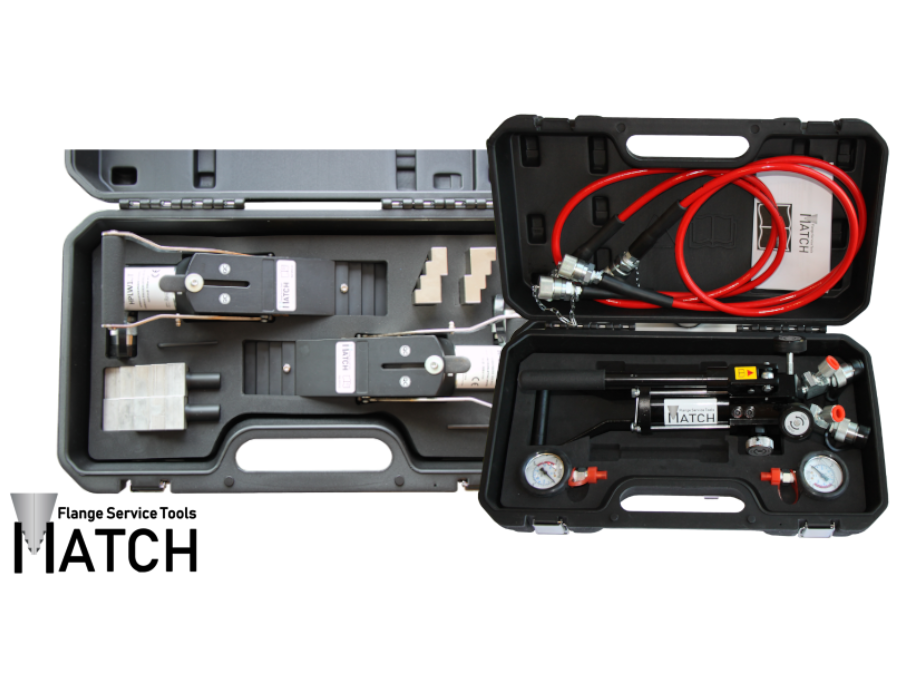

Hydraulic lifting wedges (HPLW18T Twin) in transport case and hydraulic hand pump (HP350BEX) Twin connection with 2x red hydraulic hose in transport case
Hydraulic lifting wedges (HPLW18T Single Kit) with transport case, step block and safety block
Hydraulic lifting wedge (HPLW18T Twin Kit) in transport case
Hydraulic hand pump (HP350BEX) Twin connection with 2x red hydraulic hose in transport case

HPLW18THPB Twin Kit

Precise Hydraulic Lifting Wedge 36,0 ton Twin Kit incl. HP350B Hydraulic Hand Pump Kit

BOX A
2 x HPLW18T Hydraulic Lifting Wedge
with Hydraulic Cylinder 700bar
2 x Safety Block & Stepped Block
2 x Hex Key & Countersunk Screw
1 x Carry Case
Tool Only Weight (KG) 8,5

BOX B
1 x P350BEX single pump 700 bar,
0.35L oil capacity
2 x pressure gauge 0-1,000 bar + coupling 1/4″
2 x pressure gauge adapter with coupling 3/8″
2 x Hydraulic hose HH180
1 x Carry case
Tool Only Weight (KG) 6.1

Gross Kit Weight 22,60 + 11,50 = 34,10 kg

Categories: ,

Description

Precise Hydraulic Lifting Wedge 36,0 ton Twin Kit incl. HP350B Hydraulic Hand Pump Kit

The precise hydraulic lifting wedge HPLW18T with a lifting capacity of 18.0 t (180 kN) is not only used in special technical applications, but also in general lifting and installation processes in various industries.

The HPLW is designed to move loads in a controlled manner, providing a safe, smooth and secure grip when lifting or lowering heavy equipment. This tool lifts an object in one stable movement from an access gap of only 9.5 mm.



HP350B Hydraulic Oil-tight Hand Pump – Hose KIT Double Connection

Oil-tight hydraulic hand pumps ATEX from MATCH have been specially developed to operate in all directions without loss of performance. This includes underwater applications.

Can be used with all 700 bar tools within their oil capacity specification, e.g. HSW15TEX Twin Kit, HLW18T Twin Kit, . Each pump kit includes pressure gauge, adapter, coupling and two oil-filled 1.80m hydraulic hoses with couplings.

Tool Capabilities

Precise Hydraulic Lifting Wedge 36,0 ton Twin Kit

LIFTING FORCE
with 700bar hydraulic pressure applied
▪ 18.0T (180 kN)

LIFTING DISTANCE
▪ 9.5mm - 29.50mm
using only 1st step
▪ 9.5mm - 51.50mm
using 4 steps (without stepped blocks)
▪ 9.5mm - 59.5mm
using optional stepped block kit

TOOL WEIGHT: 8.5kg



HP350B Hydraulic Oil-tight Hand Pump - Hose KIT Double Connection

MAX PRESSURE RATING
1st Stage : 13,8 bar
2nd Stage : 700 bar

OIL CAPACITY
350cc

Technical Data Sheets

Operating manual only upon request

TDS_HPLW18T_Twin-Kit_EN

TDS_HP350B-Kit_EN
