HPLW18THPA Single Kit

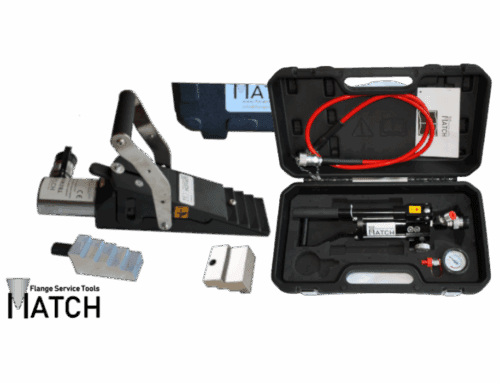

Hydraulic lifting wedges (HPLW18T Single) with transport case, step block and safety block and hydraulic hand pump (HP350AEX) single connection with 1x rod hydraulic hose in transport case
Hydraulic lifting wedges (HPLW18T Single Kit) with transport case, step block and safety block
Hydraulic lifting wedge (HPLW18T Single Kit) in transport case

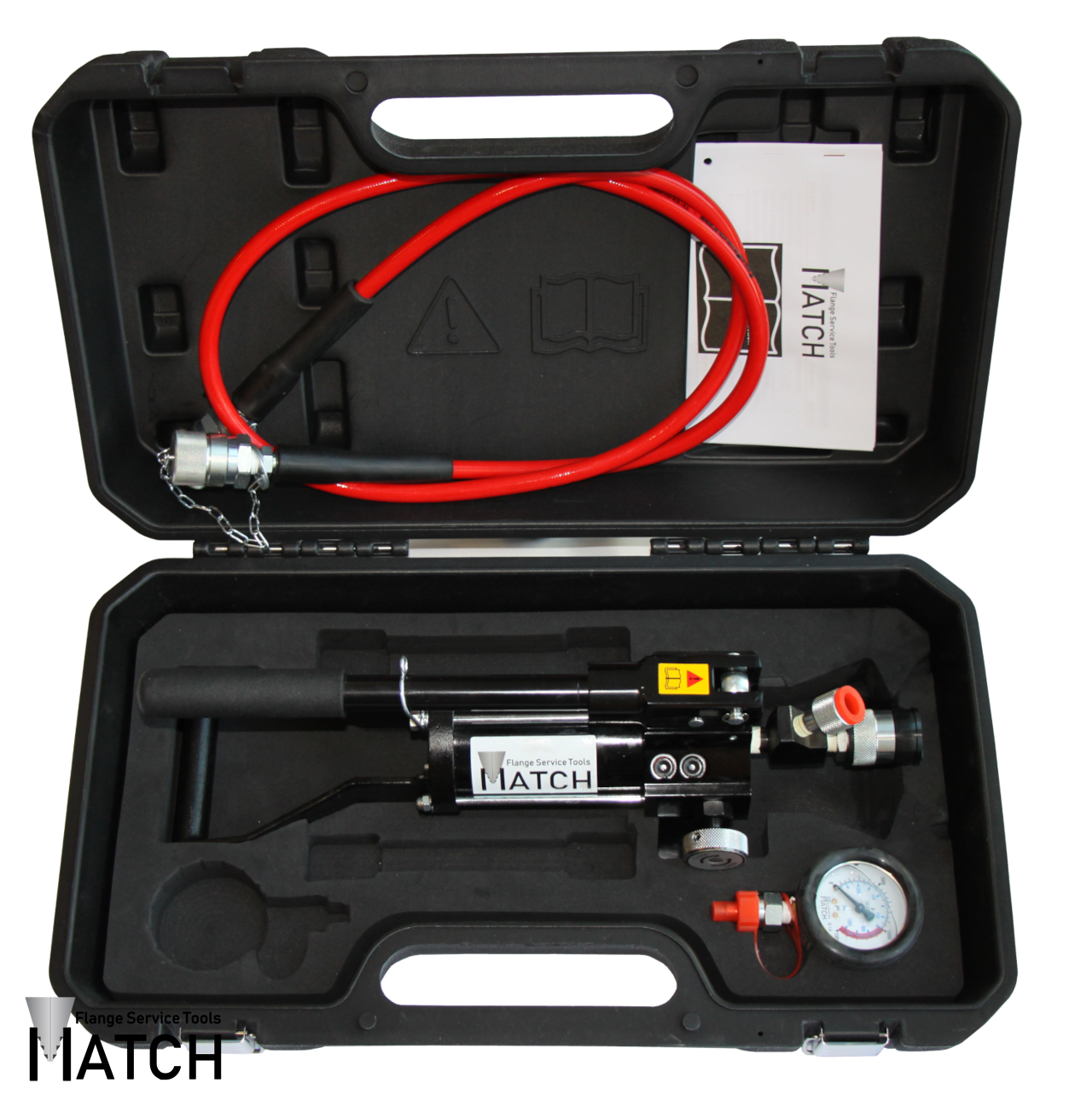

Hydraulic hand pump (HP350AEX) single connection with 1x red hydraulic hose in transport case

HPLW18THPA Single Kit

Precise Hydraulic Lifting Wedge 18,0 ton Single Kit incl. HP350A Hydraulic Hand Pump Kit

BOX A
1 x HPLW18T Hydraulic Lifting Wedge
with Hydraulic Cylinder 700bar
1 x Safety Block & Stepped Block
1 x Hex Key & Countersunk Screw
1 x Carry Case
Tool Only Weight (KG) 8,5

BOX B
1 x P350AEX single pump 700 bar,
0.35L oil capacity
1 x pressure gauge 0-1,000 bar + coupling 1/4″
1 x pressure gauge adapter with coupling 3/8″
1 x Hydraulic hose HH180
1 x Carry case
Tool Only Weight (KG) 4.2

Gross Kit Weight 12,8 + 8,70 = 21,50 kg

Categories: ,

Description

Precise Hydraulic Lifting Wedge 18,0 ton Single Kit incl. HP350A Hydraulic Hand Pump Kit

The precise hydraulic lifting wedge HPLW18T with a lifting capacity of 18.0 t (180 kN) is not only used in special technical applications, but also in general lifting and installation processes in various industries.

The HPLW is designed to move loads in a controlled manner, providing a safe, smooth and secure grip when lifting or lowering heavy equipment. This tool lifts an object in one stable movement from an access gap of only 9.5 mm.



HP350A Hydraulic Oil-tight Hand Pump – Hose KIT Single Connection

Oil-tight hydraulic hand pumps ATEX from MATCH have been specially developed to operate in all directions without loss of performance. This includes underwater applications.

Can be used with all 700 bar tools within their oil capacity specification, e.g. HSW15TEX Single Kit, HFA9T, HLW18T Single Kit, HMSP. Each pump kit incl. pressure gauge, adapter, coupling and oil felt 1.80m hydraulic hose with couplings.

Tool Capabilities

Precise Hydraulic Lifting Wedge 18,0 ton Single Kit

LIFTING FORCE
with 700bar hydraulic pressure applied
▪ 18.0T (180 kN)

LIFTING DISTANCE
▪ 9.5mm - 29.50mm
using only 1st step
▪ 9.5mm - 51.50mm
using 4 steps (without stepped blocks)
▪ 9.5mm - 59.5mm
using optional stepped block kit

TOOL WEIGHT: 8.5kg



HP350A Hydraulic Oil-tight Hand Pump - Hose KIT Single Connection

MAX PRESSURE RATING
1st Stage : 13,8 bar
2nd Stage : 700 bar

OIL CAPACITY
350cc

Technical Data Sheets

Operating manual only upon request

TDS_HPLW18T_Single-Kit_EN

TDS_HP350A-Kit_EN
