SW15TE Standard Kit

Hydraulic Flange Spreader Standard Tool Kit

(*DL) Discontinued line, check Cross Reference Charts

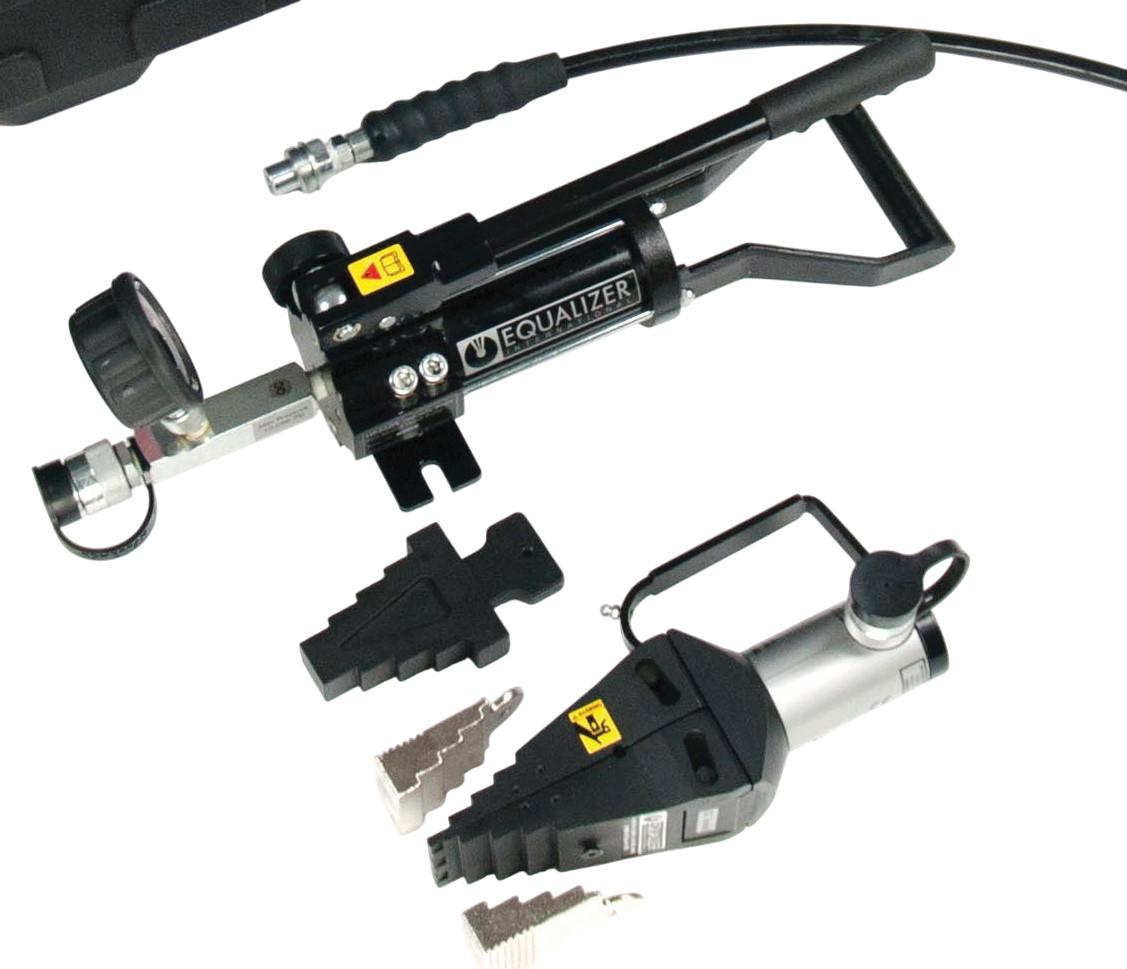

1 x SW15TE Wedgehead
1 x Pair of Stepped Blocks
1 x 10,000 psi (700 bar) Hydraulic Hose, 2 m (78.75″)
1 x 10,000 psi (700 bar) Hydraulic Cylinder
1 x 10,000 psi (700 bar) HP350S Sealed Hand Pump with Gauge
1 x Safety Block
1 x Instruction Manual
1 x Carry Case

Category:

Description

The SW15TESTDSPB is a mobile, robust and lightweight hydraulic flange spreader from Equalizer International that generates a smooth spreading force of up to 15.5 tonnes (155 kN) at 700 bar (10,000 psi). Its design makes it ideal for safely separating flange joints in a variety of industrial applications.

The unique, patented first expansion stage with interlocking profile provides exceptional stability and operational safety. The tool remains stable even from a minimum access gap of just 6 mm. The SW15TESTDSPB is a reliable solution for tasks requiring high precision, especially in confined spaces and difficult operating conditions.

Product code: SW15TESTDSPB
