MVOS7T-1836 Kit

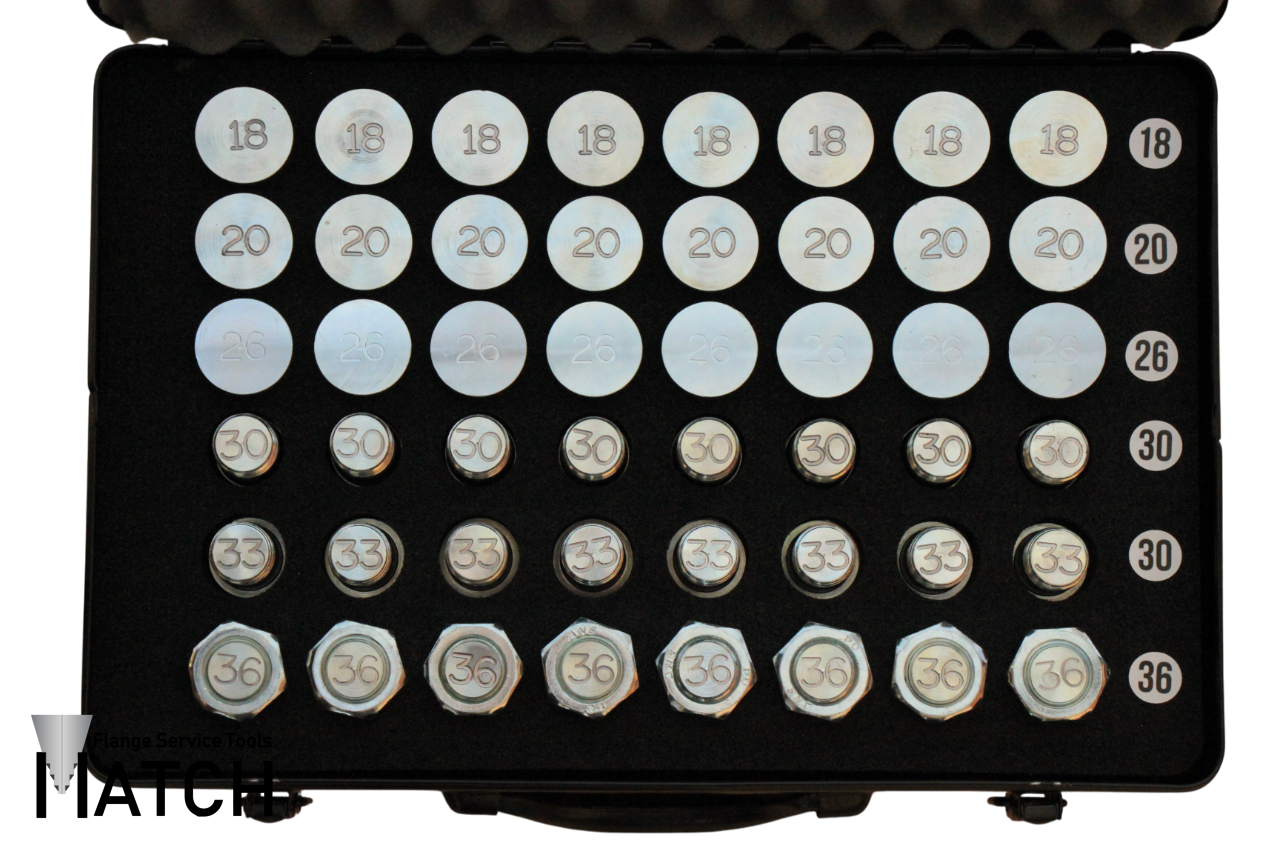

Pins set 18,20,26,30,33,36mm for mechanical valve-out spreaders
Mechanical Valve-out spreader
Mechanical valve-out spreader kit that connects two pipe flanges
Mechanical valve-out spreader kit that connects two yellow pipe flanges, open
Mechanical valve-out spreader kit that connects two yellow pipe flanges, closed

MVOS7T-1836 Kit

Mechanical Valve Spreader with plates and spacers up to 400mm and bolt hole pin set for 18,22,26,30,33,36mm

BOX A
2 x MVOS-M articulated plates
2 x MVOS7T-F articulated plates
2 x Spacer AHF 45mm
2 x Spacer AHM 45mm
3 x Spacer AH50mm
2 x Spacer AH100mm
1 x Torque Wrench wit Socket
1 x Carry-Case 44*30*12cm /15,6kg

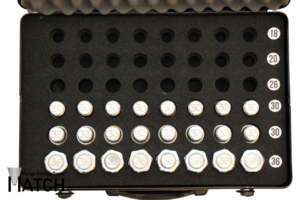

BOX B
8 x Bolt Hole Pins 18mm
8 x Bolt Hole Pins 22mm
8 x Bolt Hole Pins 26mm
8 x Bolt Hole Pins 30mm
8 x Bolt Hole Pins 33mm
8 x Bolt Hole Pins 36mm
1 x Carry-Case 44*30*12cm / 18,4kg

Gross Kit Weight (KG) 34

Category:

Description

Mechanical Valve Out Spreader 7,0 ton 18, 22, 26, 30, 33 and 36mm Kit

The MVOS7T-1836 Kit is a versatile mechanical valve spreader kit designed for spreading flange connections without an initial gap. The tool is ideal for installation, maintenance and repair work – wherever classic MSW or HSW spreaders are not sufficient, e.g. with compact flanges (such as NORSOK) or flange-to-flange, directly on the valve.

This kit supports up to 6 of the most common bolt hole sizes: 18, 22, 26, 30, 33 and 36 mm, making it a universal solution for many industries.

Key features of the MVOS7T-1836 Kit:

  • Compatibility range 18–36 mm – ideal for most standard flange connections.
  • Spreading force 7 tonnes (70 kN) – high performance even in demanding conditions.
  • Zero gap function – allows spreading from 0 mm, which is crucial in applications without access to the initial gap.
  • Mechanical operation – no external power supply required, easy and safe to use.

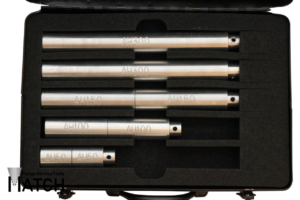

  • Spreading range up to 400 mm, with the option of extending to 1000 mm using the MVOS7T-AH Extension Kit 600.
  • In addition, durable components and a mobile transport case ensure convenience and durability.

The MVOS7T-1836 Kit valve spreader is designed for professionals in the petrochemical, refining, energy and shipbuilding industries. Due to its wide range and robust construction, the tool ensures reliable operation in any service situation.

Check out our offer on DirectIndustry! There you will find all MATCH tools – compare them with the competition and choose the best solutions for spreading valves and flanges.

Technical Data Sheets

Operating manual only upon request

TDS_MVOS7T_EN
